Install and Use NetBeans 6.9 part 6







What do we have in this session 6?



  1. Creating the JSF Managed Bean and JSF Pages

  2. Creating the Managed Bean





Creating the JSF Managed Bean and JSF Pages



In this section you will create the presentation layer for the application using JavaServer Faces (JSF) 2.0 and a managed backing bean that is used by the JSF pages. The JSF 2.0 specification adds support for Facelets as the preferred view technology for JSF-based applications. Starting with JSF 2.0, you can also use the @ManagedBean annotation in your source code to declare a class a managed bean. You are no longer required to add entries in the faces-config.xml file to declare JSF managed beans. You can use bean names in JSF pages to access methods in the managed bean.



Creating the Managed Bean



In this exercise you will create a simple JSF managed bean that is used to access the session facade. The JSF 2.0 specification that is part of Java EE 6 enables you to use annotations in the bean class to identify the class as a JSF managed bean, to specify the scope and to specify a name for the bean.

To create the managed bean, perform the following steps.

Right-click the project node and choose New > Other.



NetBeans IDE: selecting the Java web application project, invoking the New - Other Java project component





Select JSF Managed Bean from the JavaServer Faces category. Click Next.



NetBeans IDE: selecting the Java web application project, selecting the JSF managed bean file type



Type MessageView for the Class Name.

You will use the Managed Bean name MessageView as the value for the inputText and commandButton in the JSF page index.xhtml when calling methods in the bean.

Type my.presentation for the Package.

Type MessageView for the Name that will be used for the managed bean.

When you create the managed bean using the wizard, the IDE will by default assign a name to the bean based on the name of the bean class.

Set Scope to request. Click Finish.



















-----------------------------------------------------------------------------------------------------------------------------------

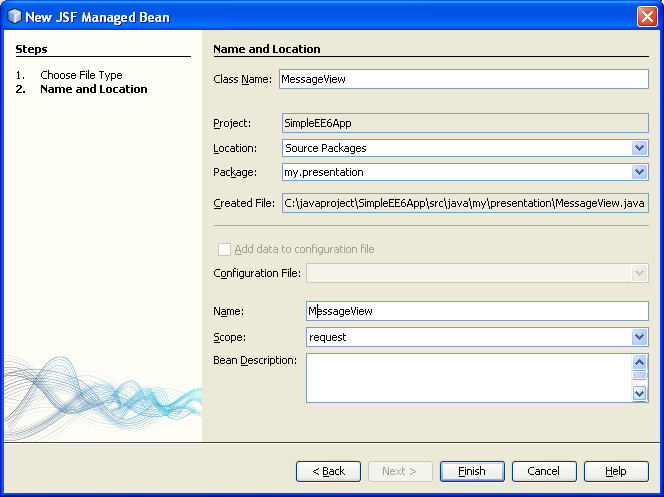

NetBeans IDE: selecting the Java web application project, setting the JSF managed bean files name and location



When you click Finish, the IDE creates the bean class and opens the class in the editor. In the Projects window you will see the following files.



NetBeans IDE: selecting the Java web application project, the generated java source file template



In the editor, you can see that the IDE added the @ManagedBean and @RequestScoped annotations and the name of the bean.



NetBeans IDE: selecting the Java web application project, the added annotations for JSF managed beans



You will now add an @EJB annotation to use dependency injection to obtain a reference to the MessageFacade session bean. You will also call the findAll and create methods that are exposed in the session facade. The IDE's code completion can help you when typing the methods.



Right-click in the editor and choose Insert Code (Ctrl+I) to open the popup context menu.

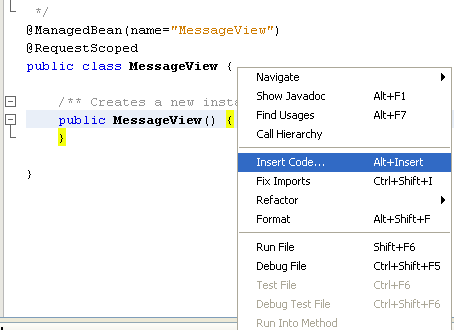

NetBeans IDE: selecting the Java web application project, invoking the Insert Code context menu



Choose Call Enterprise Bean in the popup menu.

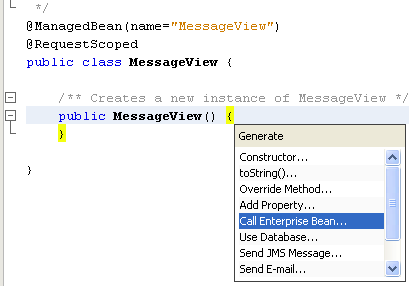

NetBeans IDE: selecting the Java web application project, selecting the Call Enterprise Beans source code



Select MessageFacade in the Call Enterprise Bean dialog box. Click OK.

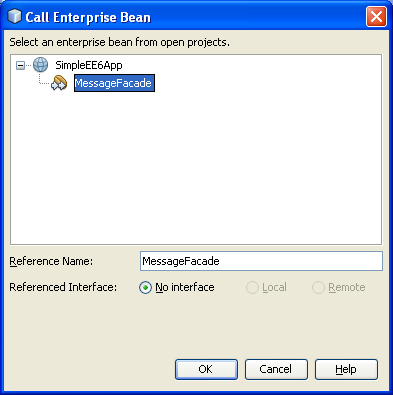

NetBeans IDE: selecting the Java web application project, selecting an enterprise benas from open projects



When you click OK, the IDE adds the following code (in bold) to inject the bean.



public class MessageView {

    /** Creates a new instance of MessageView */
    public MessageView() {
    }

    // Injects the MessageFacade session bean using the @EJB annotation
    @EJB
    MessageFacade messageFacade;
}



The source code is shown in the editor as shown below.

























------------------------------------------------------------------------

NetBeans IDE: selecting the Java web application project, the inserted JSF managed bean source code



Add the following code to create a new instance (MessageView.java).



    /** Creates a new instance of MessageView */

    public MessageView() {

       this.message = new Message();

    }



The following is the screenshot.



NetBeans IDE: selecting the Java web application project, creating new object instance



Next, add the following code to the class (MessageView.java).



    // Creates a new field

    private Message message;



    // Calls getMessage to retrieve the message

    public Message getMessage() {

       return message;

    }



    // Returns the total number of messages

    public int getNumberOfMessages(){

       return messageFacade.findAll().size();

    }



    // Saves the message and then returns the string "theend"

    public String postMessage(){

       this.messageFacade.create(message);

       return "theend";

    }



The following is the screenshot.



NetBeans IDE: selecting the Java web application project, adding source code and methods



Notice that the postMessage method returns the string "theend". The JSF 2.0 specification enables the use of implicit navigation rules in applications that use Facelets technology. In this application, no navigation rules are configured in faces-config.xml. Instead, the navigation handler will try to locate a suitable page in the application. In this case, the navigation handler will try to locate a page named theend.xhtml when the postMessage method is invoked.



Fix your imports (Ctrl-Shift-I) and save your changes. You can use the code completion in the editor to help you type your code.



NetBeans IDE: selecting the Java web application project, invoking the Fix Import context menu



While fixing the import, you will also having opportunity to remove the unused import by selecting the Remove unused imports tick box.

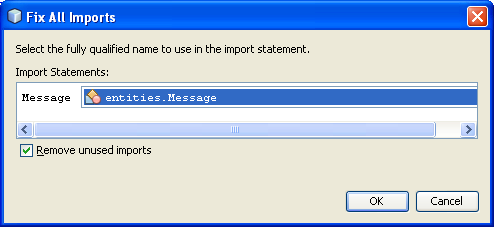

NetBeans IDE: selecting the Java web application project, fixing all the imports
